Honeycomb Blinds

SPECIFICATIONS

Premium Corded

Model	Corded (bottom up)
Controls	Cords (on left or right)
Cell Designs	Single Cell (25 or 45mm) or Double Cell (45mm)
Fabrics to choose from	67
Fabric Composition	Polyester
Rail Material	Aluminium
Cord Length	50-100% of blind height
Hold Down Clips	No
Width	230mm to 2500mm
Height	250mm to 3600mm
Maximum Size	5.5 m2
Depth Required - 25mm Single Cell	27mm
Depth Required - 45mm Single Cell	53mm
Depth Required - 45mm Double Cell	53mm
Manufacturing Tolerance in Width	+/- 3.2mm
Manufacturing Tolerance in Height	+ 6.4mm to 19mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards	6mm 9.5mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window reveal for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• The blinds are custom-made.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.

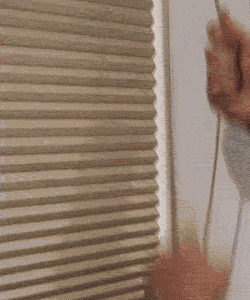

Premium Cordloop

Model	Cordloop (bottom up)
Controls	Cord (on left or right)
Cell Designs	Single Cell (25 or 45mm) or Double Cell (45mm)
Fabrics Composition	Polyester
Rail Material	Aluminium
Cord Length	50-100% of blind height
Hold Down Clips	No
Width	390mm to 3000mm
Height	250mm to 3600mm
Maximum Size	7.5 m2
Depth Required (All cell sizes)	57mm
Manufacturing Tolerance in Width	+/- 3.2mm
Manufacturing Tolerance in Height	+ 9.5mm to 32mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (Inside mount)	6mm 9.5mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window reveal for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.

Premium Vertical

Model	Vertical
Controls	Handle (cordless)
Cell Design	Single Cell 45
Fabric Composition	Polyester
Rail Material	Aluminium
Width	760 to 3700mm (7.4m side by side)
Height	600 to 3000mm
Maximum Size	11.1 m2
Depth Required for inside mount	77mm (min 65mm)
Stack Width	175mm
Manufacturing Tolerance Width	+/- 3.2mm
Manufacturing Tolerance Height	+/- 3.2mm
Width Deductions we take (inside mount)	4.8mm
Width Deductions we take (outside mount)	0mm
Height Deductions we take (inside mount)	3mm (note fabric is 16mm shorter for bottom brackets)
Height Deductions we take (outside mount)	0mm (note fabric is 13mm shorter for bottom brackets)

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window/door reveal for uninterrupted operation of the blind. Please also take into account any handles or other obstructions that may interfere with the blind.
• For the blind to sit neatly inside your window reveal, you will require a depth of up to 77mm. However, you will still be able to install your blind inside the reveal with a minimum depth of 65mm, which will result in the top of the blind slightly protruding from the reveal.
• For blinds installed within the reveal of the window/door frame, please provide the reveal window/door frame size. We will take the relevant deductions to ensure the blind fits nicely into your window/door frame.
• For blinds installed on the face of the window/door frame, please provide the exact measurements you would like the blind to be manufactured to.
• Some Customers opt to add additional width and drop to their outside dimensions to ensure sufficient fixing.  Please measure the exact coverage you require when measuring for Vertical Honeycomb face mounted blinds.



Premium Cordless

Model	Cordless (bottom up)
Controls	Handle on bottom rail
Cell Designs	Single Cell (25 or 45mm) and Double Cell (45mm)
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	290 to 2500mm
Height	250 to 2200mm
Maximum Size	5.5 m2
Depth Required (25mm cell)	46mm
Depth Required (45mm cells)	57mm
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	+ 12.7mm to +76.2mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (Inside mount	6mm 9.5mm
Height Deductions we take (inside mount)	0mm



Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• Handles - 2 handles are provided when width is over 1270mm.
• The blinds are custom-made.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.



Premium Cordless Dual View

Model	Cordless Dual View
Controls	Handle on bottom rail and mid rail
Cell Designs	Single Cell (25 or 45mm) and Double Cell (45mm)
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	390 to 2500mm
Height	250 to 2200mm
Maximum Size	5.5 m2
Depth Required (25mm cell)	57mm
Depth Required (45mm cells)	57mm
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	+ 12.7mm to +76.2mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (inside mount)	6mm 9.5mm
Height Deductions we take (inside mount)	0mm



Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• Handles - 2 handles per rail are provided when width is over 1270mm.
• The blinds are custom-made.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.



Premium Cordless Day Night

Model	Cordless Day Night
Controls	Handle on bottom rail
Cell Designs	Single Cell (25 or 45mm) and Double Cell (45mm). Day colour only available in single cell design.
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	390 to 2500mm
Height	250 to 2200mm
Maximum Size	5.5 m2
Depth Required (25mm cell)	57mm
Depth Required (45mm cells)	57mm
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	+ 12.7mm to +76.2mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (Inside mount)	6mm 9.5mm
Height Deductions we take (inside mount)	0mm



Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• Handles - 2 handles per rail are provided when width is over 1270mm.
• The blinds are custom-made.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.



Premium Corded Dual View

Model	Corded Dual View
Controls	Cords (Left and Right)
Cell Designs	Single Cell (25 or 45mm) and Double Cell (45mm)
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Width	230 to 2500mm
Height	250 to 3600mm
Maximum Size	5.5 m2
Depth Required 25mm Single Cell	32mm
Depth Required 45mm Single Cell	53mm
Depth Required 45mm Double Cell	53mm
Hold Down Clips	No
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	+ 6.4mm to +19mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (inside mount)	6mm 9.5mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.



Premium Corded Day Night

Model	Corded Day Night
Controls	Corded
Cell Designs	Single Cell (25 or 45mm) and Double Cell (45mm)
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	230mm to 2500mm
Height	250mm to 3600mm
Maximum Size	5.5 m2
Depth Required - 25mm Single Cell	27mm
Depth Required - 45mm Single Cell	53mm
Depth Required - 45mm Double Cell	53mm
Manufacturing Tolerance in Width	+/- 3.2mm
Manufacturing Tolerance in Height	+ 6.4mm to +19mm
Width Deductions we take (inside mount) Width Deductions we take with Light Guards (Inside mount)	6mm 9.5mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• Cords - the top rail is controlled by cord on left and bottom rail is controlled by cord on right.
• Cords - colour will match the day colour for Day Night blinds.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.



Premium Smartfit

Model	SmartFit (cordless top down and bottom up)
Controls	Handles on top and bottom rails
Cell Designs	Single (25 or 45mm) and Double (45mm)
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	230 to 1800mm
Height	150 to 2200mm
Maximum Size (up to 1270mm width)	2.7 m2
Maximum Size (over 1270mm width)	4 m2
Depth Required (25mm single cell)	32mm
Depth Required (45mm single cell)	49mm
Depth Required (45mm double cell)	49mm
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	Adjustable
Width Deductions we take (inside mount)	6mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• For blinds over 1270mm width, two handles are provided per rail.
• For blinds over 1270mm width with 25mm single cell, extra support cords are provided down the centre of the blind.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.
• Smartfit blinds are supplied with white cord only.

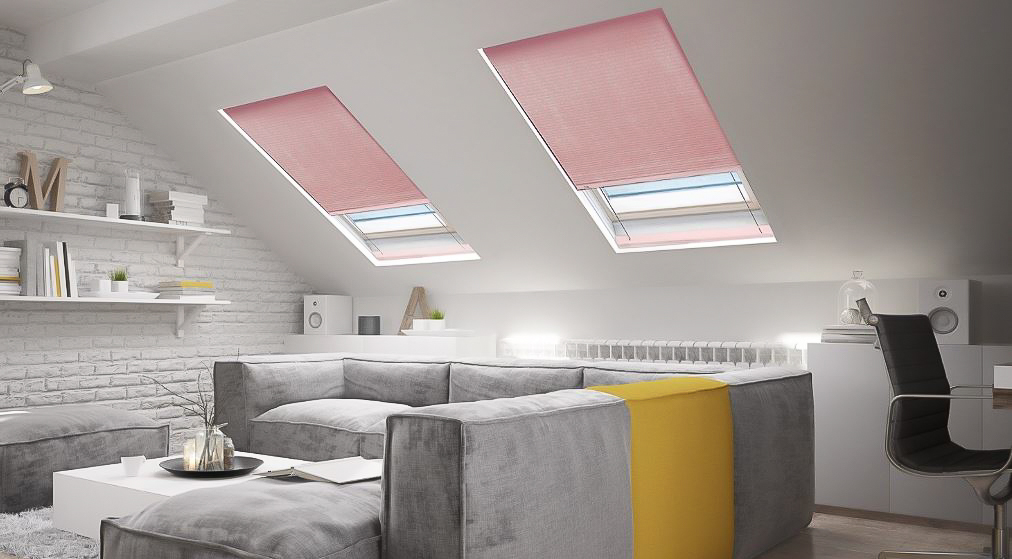

Premium Skylight

Model	Skylight
Controls	Handle on bottom rail (cordless)
Cell Designs	Single Cell 25mm
Fabrics	67
Fabric Composition	Polyester
Rail Material	Aluminium
Hold Down Clips	No
Width	230 to 1500mm
Height	150 to 3000mm
Maximum Size	4.5 m2
Depth Required (25mm single cell)	32mm
Manufacturing Tolerance - Width	+/- 3.2mm
Manufacturing Tolerance - Height	Adjustable
Width Deductions we take (inside mount)	6mm
Height Deductions we take (inside mount)	0mm

Points to note:

• All required hardware is included.
• 'Depth Required' is the clearance required from the front to the back of your window frame for uninterrupted operation of the blind. Please also take into account any window handles or other obstructions that may interfere with the blind.
• For blinds installed on the inside of the window frame, please provide the inside window frame size. The factory will take the relevant deductions to ensure the blind fits nicely into your window frame.
• For blinds installed on the outside of the window frame, please provide the exact measurements you would like the blind to be manufactured to.
